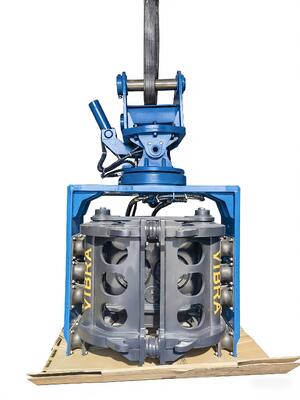

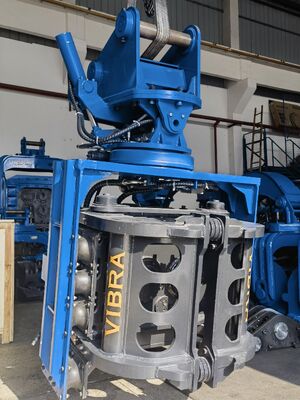

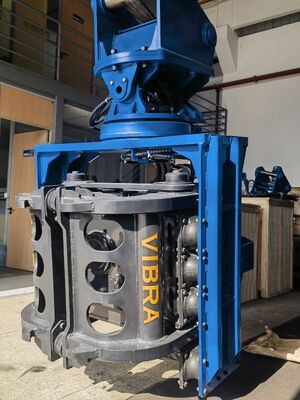

The SV300 Side Grip Pile Driver is a specialized hydraulic vibratory attachment engineered to transform standard 25–32 ton excavators into highly versatile piling machines. Designed specifically for low headroom and narrow space construction environments – such as factory extensions, bridge underpinning, railway renovations, tunnel extensions, and urban infrastructure projects – the SV300 delivers exceptional performance where conventional piling equipment simply cannot operate.

As a leading Exporters Side grip pile driver from China, the SV300 represents the latest advancement in hydraulic vibratory hammer technology. Unlike traditional pile drivers that require tall vertical clearance and dedicated leaders, this unit features a unique side-clamping mechanism combined with a bottom clamp, allowing seamless pile handling, positioning, driving, and extraction without auxiliary equipment. One machine completes the entire piling cycle – clamping, positioning, driving, and extraction – eliminating the need for cranes or additional machinery.

The SV300 is equipped with a bidirectional tilt driving head Suppliers China that provides ±30° tilting capability in two independent directions. This feature is invaluable when working on sloping ground, embankments, or when piles must follow an inclined design. Operators can quickly adjust the tilt angle hydraulically to drive piles exactly vertical even when the excavator is parked on uneven terrain, or follow designed batter angles for retaining walls and slope stabilization projects. The bidirectional tilt driving head maintains consistent performance in demanding conditions, making it an essential feature for contractors working across diverse geological environments in Southeast Asia, India, and Russia.

The SV300 offers full 360 degree continuous rotation Suppliers China through a precision hydraulic rotary union that allows unlimited slewing without hose twisting or position limits. Unlike hammers limited to 180° or 270° rotation, this full 360 degree continuous rotation Suppliers China feature enables operators to orient the hammer and pile in any direction without repositioning the excavator. This capability dramatically reduces repositioning time on congested job sites, improves placement accuracy, and allows access to hard-to-reach positions between existing foundations. For photovoltaic farms, foundation grids, or urban infrastructure requiring precise alignment, this rotation capability ensures every pile is driven exactly to design specification.

The SV300 features an Exporters quick tool change system that allows operators to swap clamp jaws for different pile profiles – U-type sheet piles, Z-type sheet piles, H-beams, and circular pipe piles – in under 10 minutes using only basic hand tools. This Exporters quick tool change system eliminates the need for crane assistance during tool changes, significantly reducing downtime and keeping projects moving. One SV300 can handle multiple pile types on the same day, reducing equipment costs and maximizing fleet utilization. The system uses spring-loaded wedges and quick-release pins that make the process safe and tool-free.

With its compact structure confined spaces China engineering, the SV300 measures only 1343mm (L) × 1230mm (W) × 2923mm (H) and weighs 3150 kg (including connector and clamps). This compact structure confined spaces China design allows the attachment to fit through standard industrial doorways and operate between pillars spaced just 3.2 meters apart. The overall height of 2923 mm with clamp enables pile driving in vertical clearances as low as 3.3–3.8 meters – under bridges, inside warehouses, beneath power lines, or in tunnels where conventional piling rigs cannot fit. No expensive site modifications or special transport permits are required – simply drive your 25–32 ton excavator into the tightest job sites.

The SV300 delivers 558 kN centrifugal force with a frequency range of 2300–3000 rpm, rapidly liquefying surrounding soil to reduce friction and drive piles with exceptional speed. The side clamp provides 385 kN clamping force while the bottom clamp delivers 490 kN, ensuring zero slippage even during vibratory extraction. Operating at 32 MPa with a flow requirement of 220–280 L/min, the SV300 connects directly to the excavator's auxiliary hydraulic circuit – no external power pack required.

Southeast Asia: Handles soft soil and mixed ground conditions commonly found in infrastructure projects (ports, dikes, housing developments). The compact design is ideal for the dense urban environments of Singapore, Kuala Lumpur, and Bangkok.

India: Excels in congested city centers and industrial zones where space is at a premium. The ability to work under existing structures makes it perfect for bridge widening, metro construction, and building retrofits across Mumbai, Delhi, and Kolkata.

Russia: The robust hydraulic system maintains performance down to -20°C with proper hydraulic fluid. Ideal for foundation work in Siberia, bridge construction across frozen rivers, and industrial facility expansions where access is restricted.

Q: What types of piles can the SV300 drive?
A: The SV300 handles steel sheet piles (U-type and Z-type), H-beams (up to 350 mm flange), and circular pipe piles (up to 800 mm diameter) through its replaceable clamp interface.

Q: How does the bidirectional tilt driving head help on uneven ground?
A: The bidirectional tilt driving head provides ±30° tilt in two independent directions, allowing operators to drive piles vertically even when the excavator is parked on slopes or uneven terrain.

Q: What makes the full 360 degree continuous rotation important?
A: Full 360 degree continuous rotation allows unlimited slewing without hose twisting, enabling pile placement at any angle without repositioning the excavator – critical for congested job sites.

Q: How quick is the quick tool change system?
A: The quick tool change system allows clamp jaw swaps in under 10 minutes using basic hand tools – no crane or special equipment required.

Q: What is the minimum headroom required?
A: With its compact structure confined spaces design and overall height of 2923 mm, the SV300 can operate in vertical clearances as low as 3.3–3.8 meters.

Q: Is the SV300 suitable for the Russian market?
A: Yes. The SV300 maintains performance down to -20°C with proper hydraulic fluid and is ideal for bridge construction, industrial facility expansions, and foundation work in challenging conditions.
